162 | #include <algorithm>
#include <cmath>
#include <cstdio>
#include <cstring>
#include <iostream>
#include <vector>
using namespace std;
const double EPS = 1e-8; // 精度係數
const double PI = acos(-1.0); // π
const int N = 4;
struct Point {
double x, y;
Point(double x = 0, double y = 0) : x(x), y(y) {}
const bool operator<(Point A) const { return x == A.x ? y < A.y : x < A.x; }
}; // 點的定義
typedef Point Vector; // 向量的定義
Vector operator+(Vector A, Vector B) {
return Vector(A.x + B.x, A.y + B.y);
} // 向量加法
Vector operator-(Vector A, Vector B) {
return Vector(A.x - B.x, A.y - B.y);
} // 向量減法
Vector operator*(Vector A, double p) {
return Vector(A.x * p, A.y * p);
} // 向量數乘
Vector operator/(Vector A, double p) {
return Vector(A.x / p, A.y / p);
} // 向量數除
int dcmp(double x) {
if (fabs(x) < EPS)
return 0;
else
return x < 0 ? -1 : 1;
} // 與0的關係
double Dot(Vector A, Vector B) { return A.x * B.x + A.y * B.y; } // 向量點乘
double Length(Vector A) { return sqrt(Dot(A, A)); } // 向量長度
double Cross(Vector A, Vector B) { return A.x * B.y - A.y * B.x; } // 向量叉乘
Point GetLineProjection(Point P, Point A, Point B) {
Vector v = B - A;
return A + v * (Dot(v, P - A) / Dot(v, v));
} // 點在直線上投影
struct Circle {
Point c;
double r;
Circle() : c(Point(0, 0)), r(0) {}
Circle(Point c, double r = 0) : c(c), r(r) {}
Point point(double a) {
return Point(c.x + cos(a) * r, c.y + sin(a) * r);
} // 輸入極角返回點座標
}; // 圓
// a[i] 和 b[i] 分別是第i條切線在圓A和圓B上的切點
int getTangents(Circle A, Circle B, Point* a, Point* b) {
int cnt = 0;
if (A.r < B.r) {
swap(A, B);
swap(a, b);
}
double d2 =
(A.c.x - B.c.x) * (A.c.x - B.c.x) + (A.c.y - B.c.y) * (A.c.y - B.c.y);
double rdiff = A.r - B.r;
double rsum = A.r + B.r;
if (dcmp(d2 - rdiff * rdiff) < 0) return 0; // 內含
double base = atan2(B.c.y - A.c.y, B.c.x - A.c.x);
if (dcmp(d2) == 0 && dcmp(A.r - B.r) == 0) return -1; // 無限多條切線
if (dcmp(d2 - rdiff * rdiff) == 0) { // 內切，一條切線
a[cnt] = A.point(base);
b[cnt] = B.point(base);
++cnt;
return 1;
}
// 有外公切線
double ang = acos(rdiff / sqrt(d2));
a[cnt] = A.point(base + ang);
b[cnt] = B.point(base + ang);
++cnt;
a[cnt] = A.point(base - ang);
b[cnt] = B.point(base - ang);
++cnt;
if (dcmp(d2 - rsum * rsum) == 0) { // 一條內公切線
a[cnt] = A.point(base);
b[cnt] = B.point(PI + base);
++cnt;
} else if (dcmp(d2 - rsum * rsum) > 0) { // 兩條內公切線
double ang = acos(rsum / sqrt(d2));
a[cnt] = A.point(base + ang);
b[cnt] = B.point(PI + base + ang);
++cnt;
a[cnt] = A.point(base - ang);
b[cnt] = B.point(PI + base - ang);
++cnt;
}
return cnt;
} // 兩圓公切線 返回切線的條數，-1表示無窮多條切線

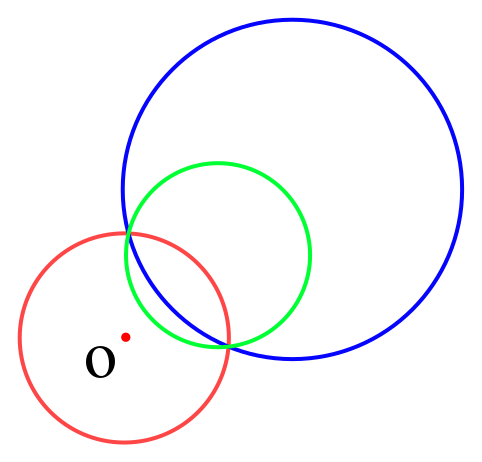

Circle Inversion_C2C(Point O, double R, Circle A) {
double OA = Length(A.c - O);
double RB = 0.5 * ((1 / (OA - A.r)) - (1 / (OA + A.r))) * R * R;
double OB = OA * RB / A.r;
double Bx = O.x + (A.c.x - O.x) * OB / OA;
double By = O.y + (A.c.y - O.y) * OB / OA;
return Circle(Point(Bx, By), RB);
} // 點 O 在圓 A 外，求圓 A 的反演圓 B，R 是反演半徑

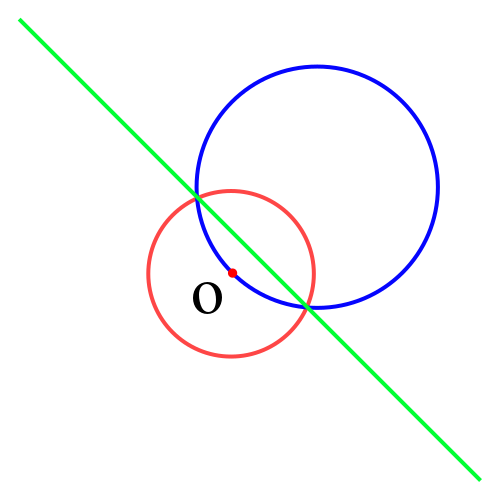

Circle Inversion_L2C(Point O, double R, Point A, Vector v) {
Point P = GetLineProjection(O, A, A + v);
double d = Length(O - P);
double RB = R * R / (2 * d);
Vector VB = (P - O) / d * RB;
return Circle(O + VB, RB);
} // 直線反演為過 O 點的圓 B，R 是反演半徑
bool theSameSideOfLine(Point A, Point B, Point S, Vector v) {
return dcmp(Cross(A - S, v)) * dcmp(Cross(B - S, v)) > 0;
} // 返回 true 如果 A B 兩點在直線同側
int main() {
int T;
scanf("%d", &T);
while (T--) {
Circle A, B;
Point P;
scanf("%lf%lf%lf", &A.c.x, &A.c.y, &A.r);
scanf("%lf%lf%lf", &B.c.x, &B.c.y, &B.r);
scanf("%lf%lf", &P.x, &P.y);
Circle NA = Inversion_C2C(P, 10, A);
Circle NB = Inversion_C2C(P, 10, B);
Point LA[N], LB[N];
Circle ansC[N];
int q = getTangents(NA, NB, LA, LB), ans = 0;
for (int i = 0; i < q; ++i)
if (theSameSideOfLine(NA.c, NB.c, LA[i], LB[i] - LA[i])) {
if (!theSameSideOfLine(P, NA.c, LA[i], LB[i] - LA[i])) continue;
ansC[ans++] = Inversion_L2C(P, 10, LA[i], LB[i] - LA[i]);
}
printf("%d\n", ans);
for (int i = 0; i < ans; ++i) {
printf("%.8f %.8f %.8f\n", ansC[i].c.x, ansC[i].c.y, ansC[i].r);
}
}
return 0;
}
|
